| MOQ: | 1 |
| ราคา: | Customized |
| บรรจุภัณฑ์มาตรฐาน: | กรณีไม้อัด |
| ระยะเวลาการจัดส่ง: | 30 วัน |
| วิธีการชำระเงิน: | ที/ที |
| ความสามารถในการจัดหา: | 20 ชุดต่อเดือน |

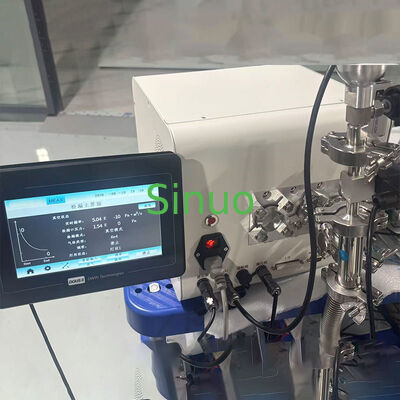

This equipment is the first-generation ANHMS-1000 series modular helium mass spectrometer leak detector. It is compatible with both vacuum and suction gun testing methods. Its compact size allows for easy integration into automated helium testing equipment for lithium battery cells.
By monitoring the helium content at the inlet module location in real time, it can quantitatively measure the helium leakage rate of lithium battery cells. It can quickly screen out unqualified and suspicious cells whose leakage rate exceeds the set value due to reasons such as casing welding defects, injection hole welding failures, and material defects.
The ANHMS-1000 series helium mass spectrometer leak detector is widely used in primary helium testing, secondary helium testing, and battery pack airtightness testing during cell production. It can ensure that the welding quality of the casing and sealing pins, as well as the overall sealing performance of the PACK and module, meet production requirements.
| Parameter | Specification |
|---|---|
| Product Model | SN-ANHMS-1000 |
| Functional Configuration | Vacuum mode, suction gun mode, dual tracer gas |
| Power Supply | AC 220V±10%, 50Hz |
| Current Consumption | < 2A |
| Fuse | 10A*2 (Diameter 5*20mm) |
| Inlet Flange | 2*DN16 KF+1*DN25 KF |
| Dimensions | 308*283*319 (W*H*D, mm) |
| Detectable Gases | He4, He3, H2 |
| Minimum Detectable Leak Rate (He4) | Gun suction mode: ≤ 5.0E-8 Pa.m³/s Vacuum mode: 1.0E-12 Pa.m³/s(1500Hz) 5.0E-13 Pa.m³/s(1000Hz) |
| Calibration Mode | Internal calibration, external calibration, external dynamic calibration |
| Calibration Leak | Microchannel type, 2.0 * 10⁻⁸ Pa·m³/s |
| Start-up Time | ≤ 3min |
| Response Time | ≤ 1s |
| Backup Pump Speed | > 1.0 L/s, ultimate vacuum < 10 Pa |
| Molecular Pump Speed | He4, 2.5 L/s (Split Flow 80) |
| Maximum Allowable Pressure | 200~1800 Pa |
| Unit of Measurement | Pa.m³/s, mbar.L/s, Torr.L/s, PPm |
| Language | Chinese/English/German |
| Display Screen | LCD, 4.3-inch color display, touchscreen |
| Communication Interface | RS232, I/O, analog input |
